Range Hoods · BHA-RH-6002

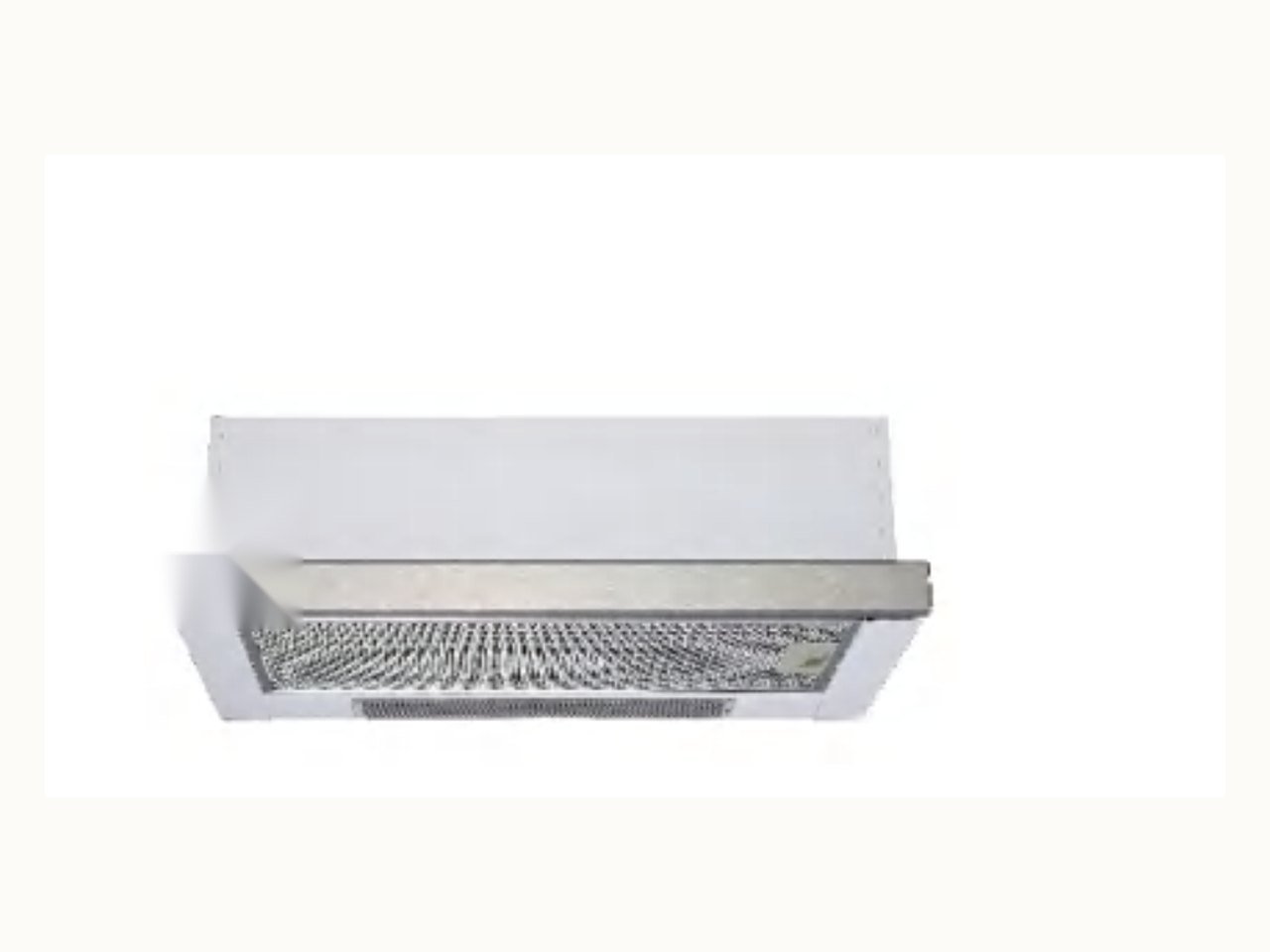

Slim Built-in Range Hood 600 / 900 mm
Ultra-slim under-cabinet hood in AISI 430 stainless steel with dual aluminium grease filters and halogen lighting.
- ✓AISI 430 stainless steel body
- ✓500 m³/h extraction
- ✓2 × 5-layer aluminium grease filter
- ✓Halogen 4 × 20 W illumination
- ✓2-speed push button control
- ✓Recirculation option with charcoal filter
Product description
The BAOHUI slim built-in range hood is designed for compact kitchens where headroom matters. At 172–225 mm deep it installs discreetly under a wall cabinet while still moving 500 m³/h of air.
Two five-layer aluminium grease filters and a Ø120 mm outlet keep extraction efficient and servicing simple. Halogen lamps (4 × 20 W) illuminate the hob surface, and a two-speed push button keeps operation intuitive for rental, apartment and hotel kitchen projects. A charcoal filter option converts the unit to recirculating mode where no external ducting is possible.
Technical specification
| Material | Inox AISI 430#S.S |
|---|---|
| Illumination | Halogen 4 × 20 W |
| Control | 2-speed push button |
| Grease filter | 2 × 5-layer aluminium |
| Air outlet | Ø 120 mm |
| Air flow | 500 m³/h |
| Ducting option | Recirculation (charcoal filter) |
| Packing (600 mm) | 655 × 225 × 355 mm |
| Packing (900 mm) | 960 × 255 × 355 mm |
| Gross / Net (600 mm) | 10 kg / 9 kg |
| Gross / Net (900 mm) | 12 kg / 10.5 kg |
Specifications are those published by the production line for this model. Confirm the final sheet at order stage — small revisions are normal between production batches.
